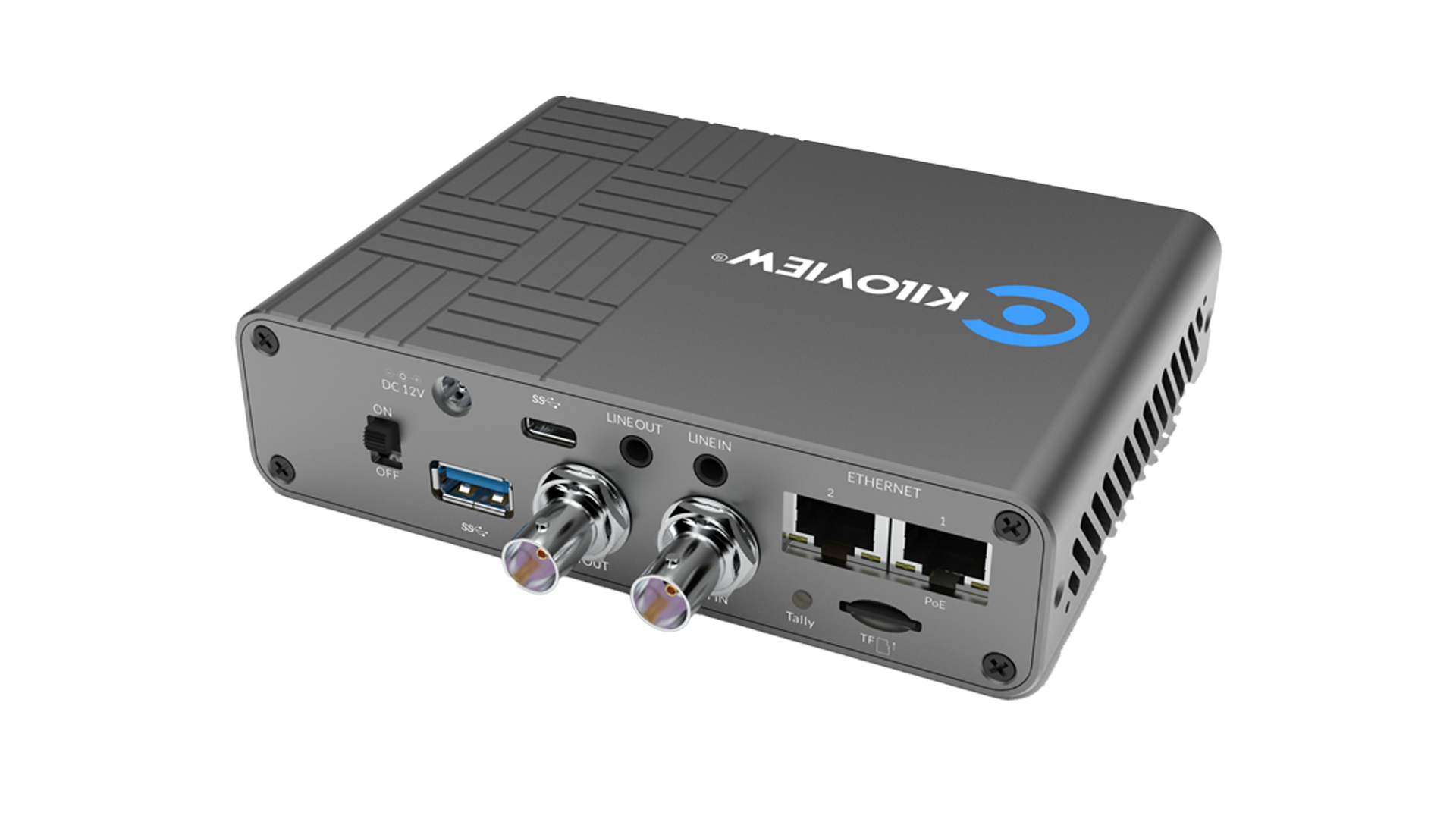

Kiloview N5 3G SDI to Full NDI and NDI HX2/3
5 700 SEK
Enhanced One-Stop Shop to access the World of NDI
- Maila oss, vi svarar snabbt!
Information och specifikationer är vägledande och kan utan förvarning ändras av producenten. Alla uppgifter lämnas med reservation för tryckfel, och bilder är vägledande. Vissa texter kan vara autogenererade eller maskinöversatta och kan därför ge texter som kan vara missvisande.
- FärgN/A
- VarumärkeKiloview
Beskrivning
Art.nr: K-N5
Kiloview N5/N6 NDI converter is a bi-directional converter that supports 3G-SDI/HDMI input (encoder) to both NDI high bandwidth and NDI|HX2/3 with loop through for view on monitor, or 3G-SDI/HDMI video output (decoder) from any NDI sources coming from any camera, software or device from any brand, either from NDI high bandwidth or NDI|HX2/3.
Featured with powerful functions such as PoE, LCD display with big-sized tally , PTZ control, 3.5mm audio line in/out, multi-channel audio, intercom functions, centralized management, N6 is the easiest way to get access to the fabulous NDI world for low latency and high image quality with versatile choices.
N5 supports 3G-SDI input while N6 supports HDMI input.
*The next update will support NDI|HX3.
2-IN-1 for NDI Encoding & Decoding
Kiloview N5/N6 supports encoding/decoding of NDI High Bandwidth and NDI|HX2/3. Both NDI encoding and decoding can work within this compact device. Switch the working mode on the UI to the mode you want, and it can easily accommodate all of your workflows.
In encoding mode, N5/N6 can encode 3G-SDI/HDMI signal into an NDI High Bandwidth/NDI|HX2/3 video stream.
In decoding mode, N5/N6 will automatically adapt the NDI High Bandwidth/NDI|HX2/3 and output through 3G-SDI/HDMI.
Audio And Intercom
Kiloview N5/N6 supports 3.5mm analog audio line in/out or embedded audio. Max 4 CH audio encoding will be supported.
It also supports voice intercom between all Kiloview devices and the control PC/phone, with
Kiloview Intercom server.

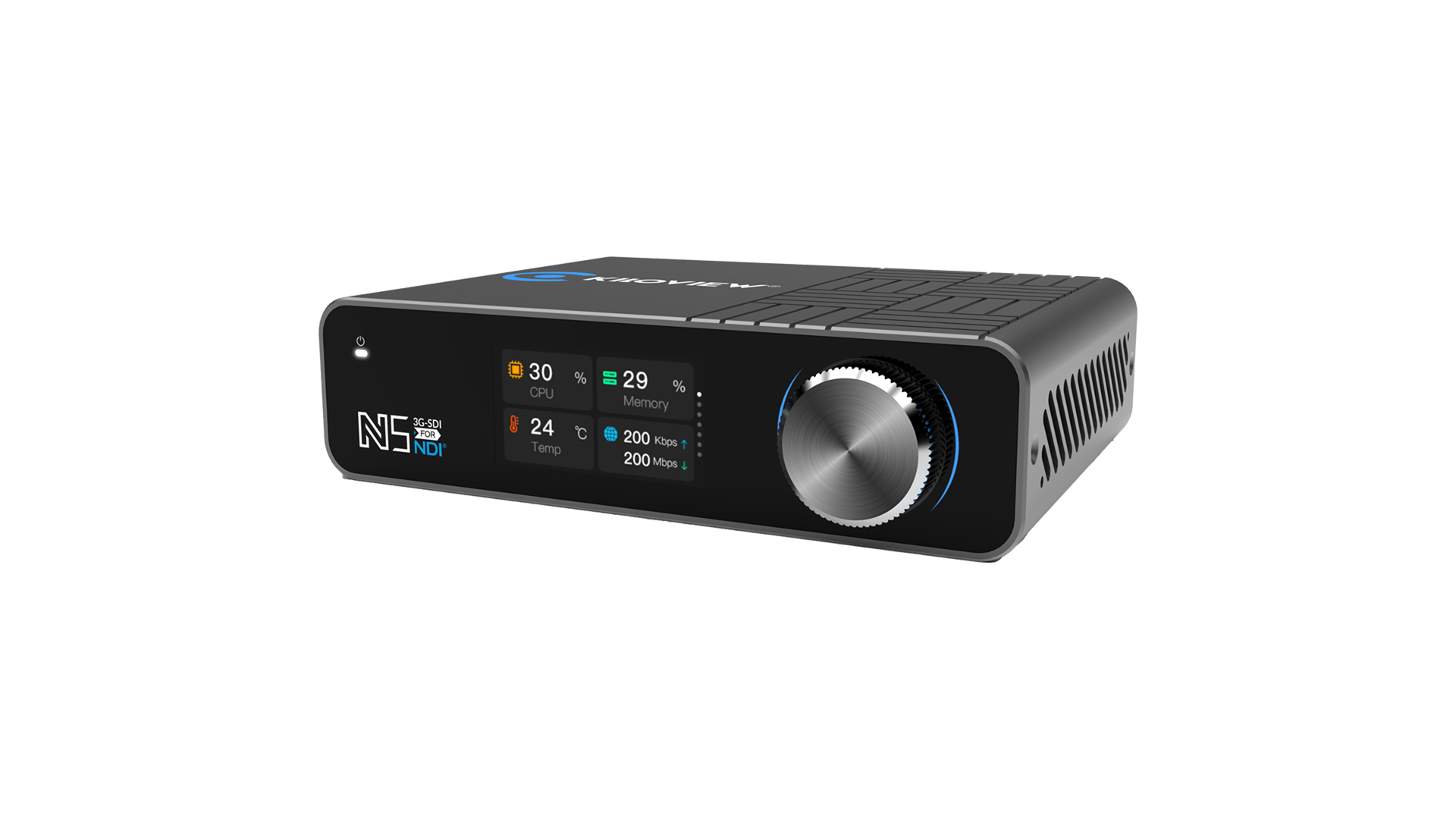

Built-in LCD Screen and Touch Button
N5/N6 is equipped with a 1.14-inch LCD screen with touch buttons for a better user experience. With the built-in LCD screen, you can easily check the connectivity, IP address, CPU, memory, resolution, temperature, and tally status in real-time.
Seamless Switching
In decoding mode, you can preset up to 9 NDI sources from the web UI and choose one to output without suffering from black screen, flashing and lagging.
PTZ Control
Kiloview N5/N6 supports PTZ control through USB to serial RS232/485/422. It also supports PTZ control over IP with different protocols, no extra cable required.
Control with a USB Keypad
In decoder mode, you can preset the NDI sources from numbers 0~9. Connect the decoder with a USB keypad, you can easily choose the output source with a single press.
Or you can even use the USB keypad to control a PTZ camera-the cheapest PTZ keyboard you can get.
Power It as You Wish
With PoE, the N5/N6 can be powered with a single cable connection. With the design of wide DC input range from 5V to 18V, it can also be easily powered by USB power or a camera battery.
Featured with powerful functions such as PoE, LCD display with big-sized tally , PTZ control, 3.5mm audio line in/out, multi-channel audio, intercom functions, centralized management, N6 is the easiest way to get access to the fabulous NDI world for low latency and high image quality with versatile choices.
N5 supports 3G-SDI input while N6 supports HDMI input.
*The next update will support NDI|HX3.
2-IN-1 for NDI Encoding & Decoding
Kiloview N5/N6 supports encoding/decoding of NDI High Bandwidth and NDI|HX2/3. Both NDI encoding and decoding can work within this compact device. Switch the working mode on the UI to the mode you want, and it can easily accommodate all of your workflows.
In encoding mode, N5/N6 can encode 3G-SDI/HDMI signal into an NDI High Bandwidth/NDI|HX2/3 video stream.
In decoding mode, N5/N6 will automatically adapt the NDI High Bandwidth/NDI|HX2/3 and output through 3G-SDI/HDMI.
Audio And Intercom
Kiloview N5/N6 supports 3.5mm analog audio line in/out or embedded audio. Max 4 CH audio encoding will be supported.
It also supports voice intercom between all Kiloview devices and the control PC/phone, with
Kiloview Intercom server.
Built-in LCD Screen and Touch Button
N5/N6 is equipped with a 1.14-inch LCD screen with touch buttons for a better user experience. With the built-in LCD screen, you can easily check the connectivity, IP address, CPU, memory, resolution, temperature, and tally status in real-time.
Seamless Switching
In decoding mode, you can preset up to 9 NDI sources from the web UI and choose one to output without suffering from black screen, flashing and lagging.
PTZ Control
Kiloview N5/N6 supports PTZ control through USB to serial RS232/485/422. It also supports PTZ control over IP with different protocols, no extra cable required.
Control with a USB Keypad
In decoder mode, you can preset the NDI sources from numbers 0~9. Connect the decoder with a USB keypad, you can easily choose the output source with a single press.
Or you can even use the USB keypad to control a PTZ camera-the cheapest PTZ keyboard you can get.
Power It as You Wish
With PoE, the N5/N6 can be powered with a single cable connection. With the design of wide DC input range from 5V to 18V, it can also be easily powered by USB power or a camera battery.
KiloView Warranty
One-year warranty by default.
2nd year: When customer receives the equipment. For a free second-year warranty extension please register and fill in the SN number for all the equipment. Kiloview Warranty Registration
3rd year: If the customer wants a longer warranty extension, we support paying for a third year of warranty extension. The charge is aprox. 10% of the MSRP of the equipment
