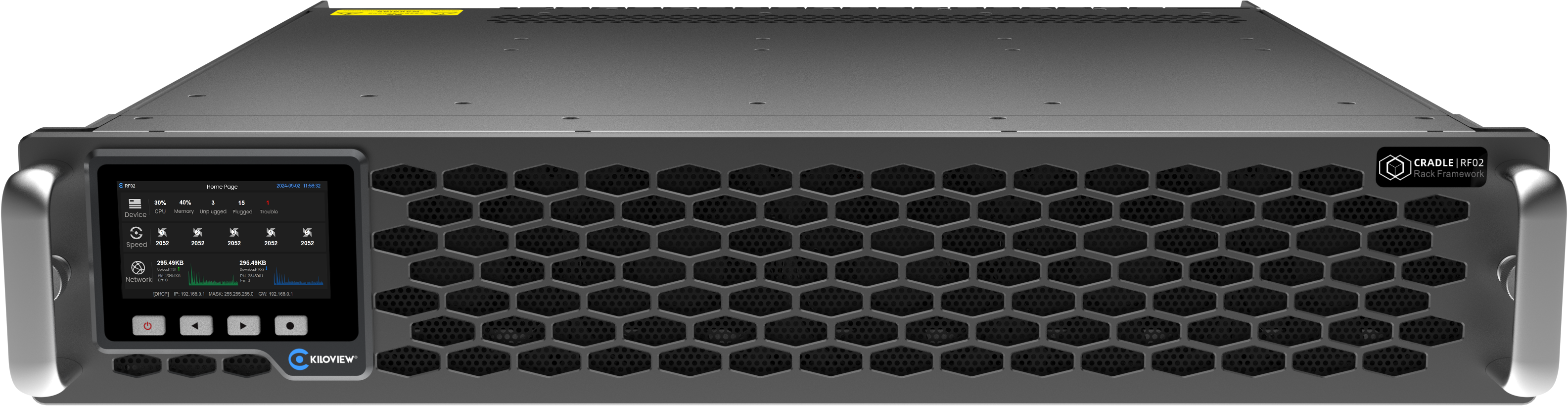

Kiloview RF02 2RU Rackmount Frame

Save Big – Cut the Cost of a Switch!

High-Speed Connectivity

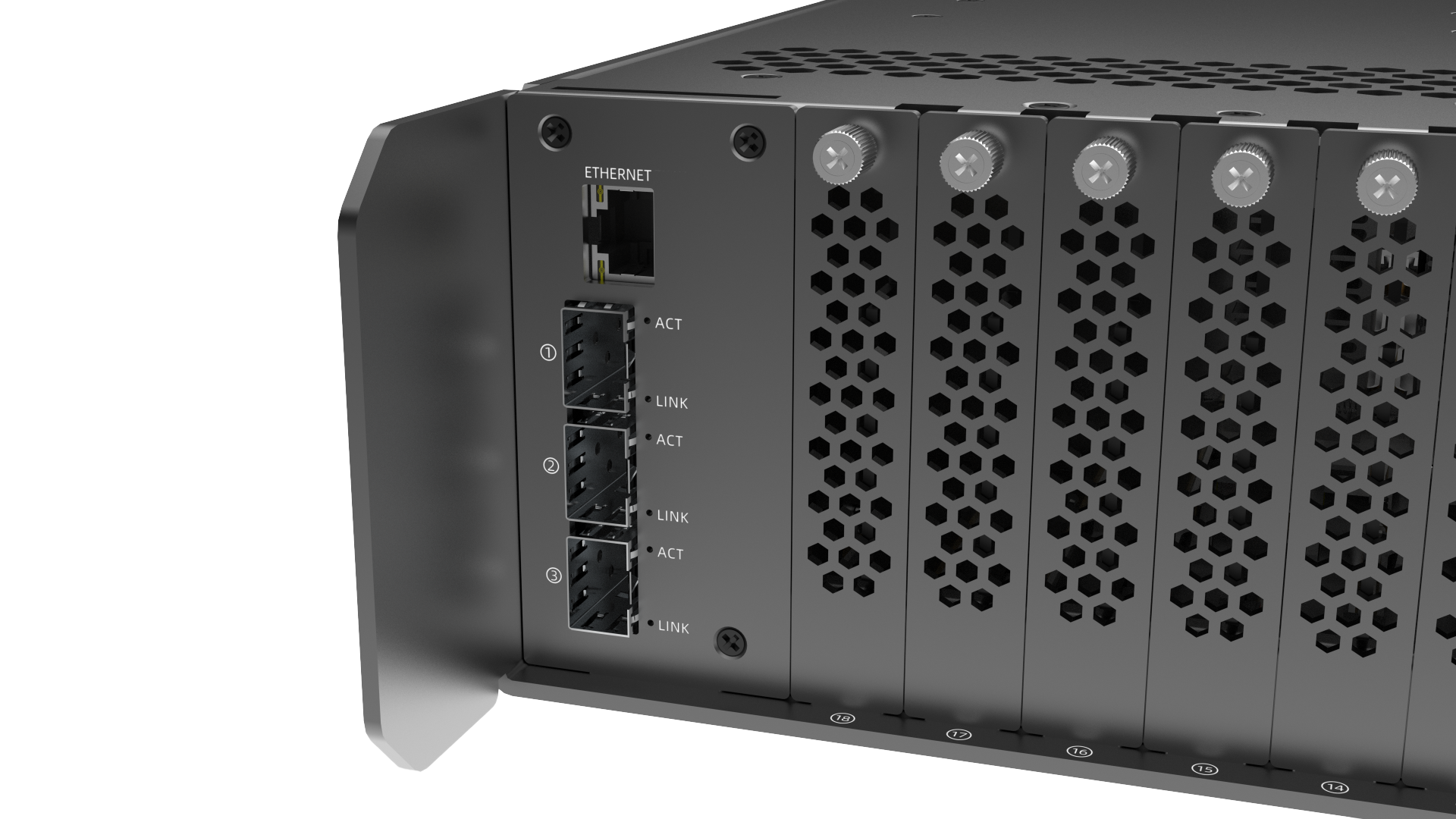

The RF02 provides three 10Gbps SFP+ fiber Ethernet interfaces and one 10Gbps RJ45 Ethernet interface, ensuring effortless handling of high-bandwidth NDI streams.

Integrated Network Switch

Equipped with a built-in 1G/2.5G network switch module that interconnects all module cards, RF02 supports a full range of capabilities including encoding, decoding, NDI conversion, media gateway, bonding, etc.

Efficient Data Flow

RF02 streamlines the data flow within the platform, eliminating the need for external network switches. This setup not only reduces setup complexity and costs but also enhances the reliability of data transfer.

Centralized Management with KiloLink Server Pro Unified Control

RF02 is powered by an ARM64 main controller running a customized version of Kiloview’s KiloLink Server Pro, purpose-built for this platform. It enables automatic discovery, monitoring, and configuration of all module cards through a unified interface.

*Planned updates will enable unified management of external devices and interconnectivity across the Kiloview ecosystem.

On-Premise Bonding Service

With media gateway card FMG-400, RF02 can serve as an on-premise server for Kiloview’s P Series 4G/5G wireless bonding encoders, providing secure and reliable remote device and bonding management. Paired with a decoding card, it can seamlessly output remote video streams to SDI or HDMI at various resolutions.

Streamlined Operations

The platform automatically identifies and manages all workflow streams, allowing users to monitor status, assign sources, and configure settings with ease—greatly reducing manual effort while ensuring stable, low-latency transmission.

Modular Design for Flexibility

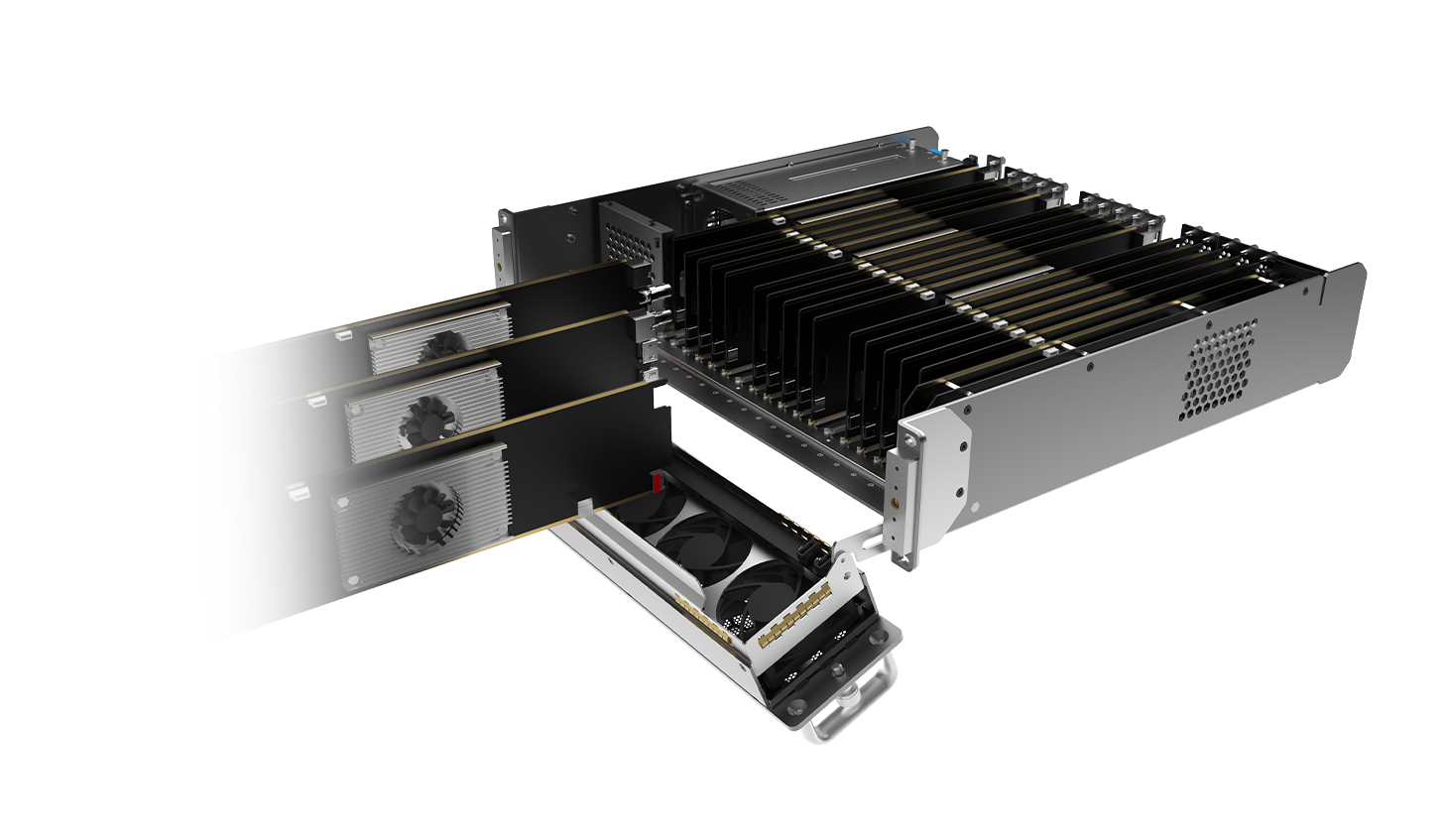

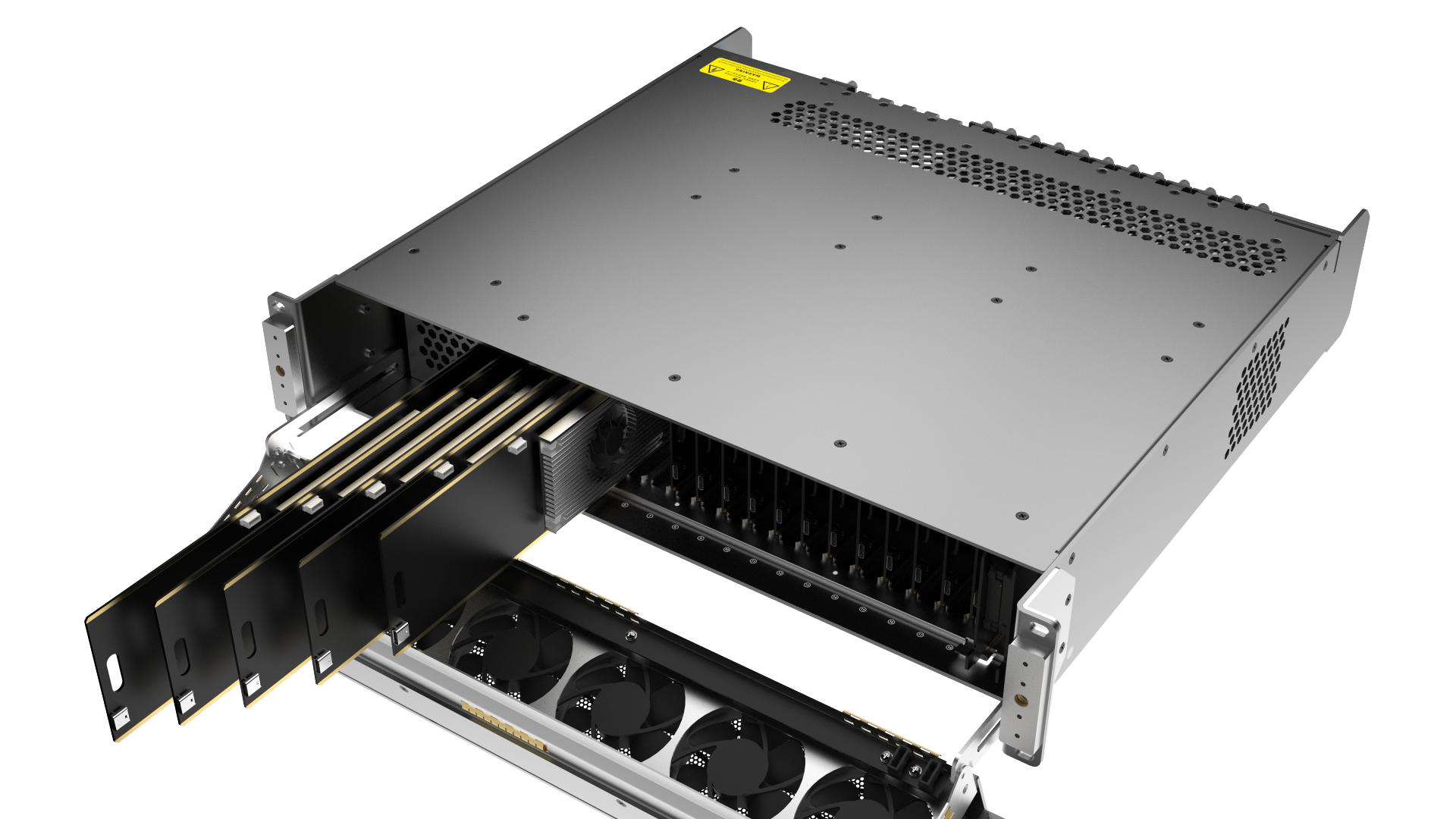

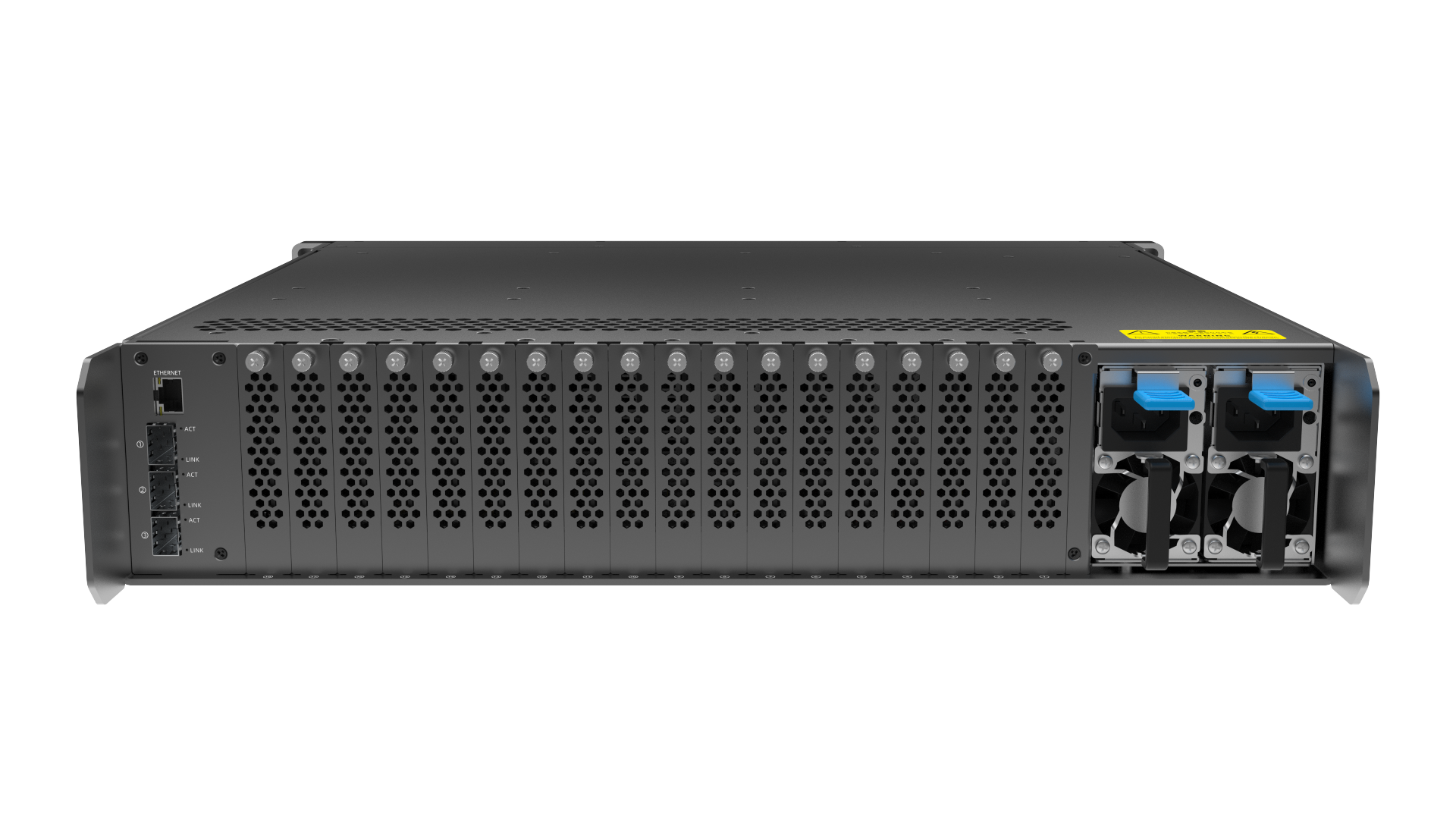

Supports Up to 18 Service Cards: RF02 features a 2RU modular design supporting up to 18 cards—including encoding, decoding, media gateway, and bonding. Each module operates independently, ensuring system stability and greatly enhancing reliability.

Customizable Configurations: RF02 offers customizable configurations with mixed card support, allowing seamless integration into diverse media workflows and rapid deployment of tailored processing systems.

Modular Control &Switching Design: RF02 features a replaceable main controller and network switch module, enabling independent upgrades of core components without replacing the entire unit—significantly reducing maintenance costs and extending system lifespan.

High Density with Space-Saving Design

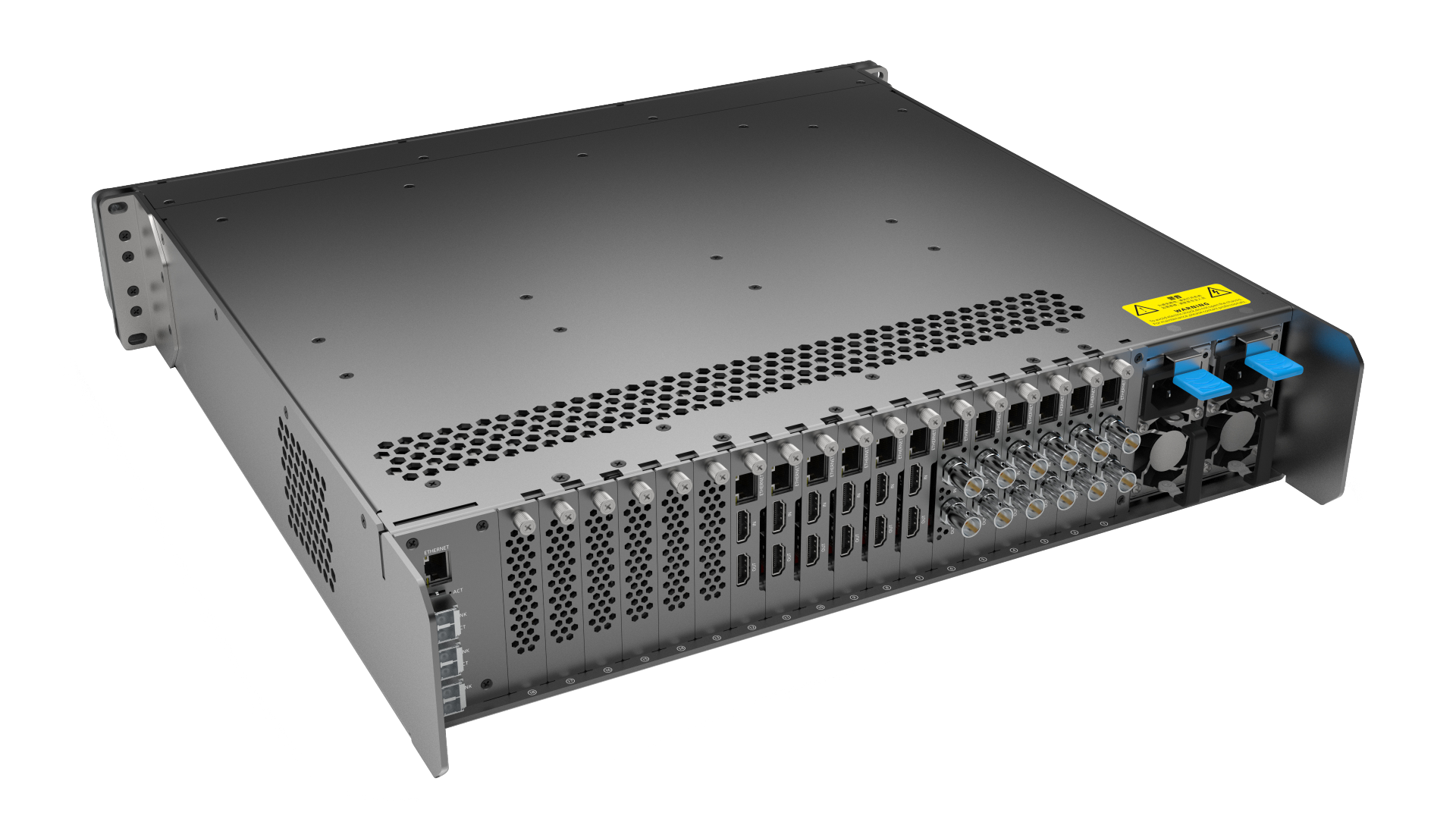

With a 2RU compact design supporting up to 18 modules, RF02 integrates encoding, decoding, media gateway, and bonding services in one unit—saving rack space and simplifying workflows, making it an essential in modern AV infrastructures.

Seamless Integration Across Workflows

• Unified System: RF02 integrates encoding, decoding, media gateway, and bonding services into a unified platform, ensuring seamless compatibility across all module cards. Its optimized architecture enables precise multitasking, reduces reliance on external devices, and enhances overall workflow efficiency.

• Reduced Setup Needs: The RF02’s integration capabilities make it a versatile solution for any media environment, enabling smoother operations and faster project turnarounds.

• Intuitive Control Panel: RF02 features an intuitive control panel for centralized control of devices and media streams, making workflow management simpler, more flexible, and more efficient.

• Reliable Performance

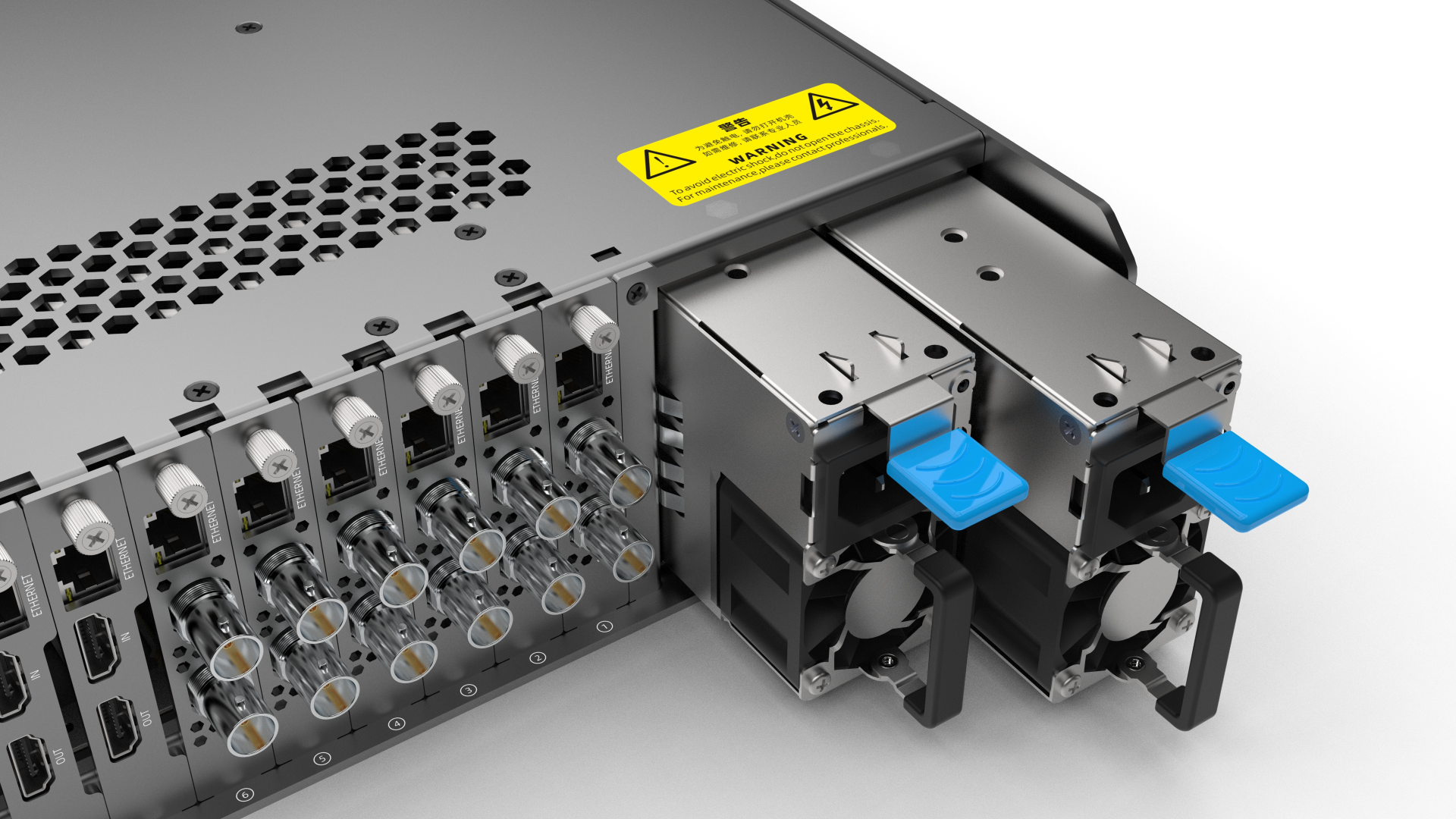

• Dual-Redundant Power Supplies: It features dual-redundant, hot-swappable 500W power supplies, ensuring uninterrupted operation even in the most demanding conditions.

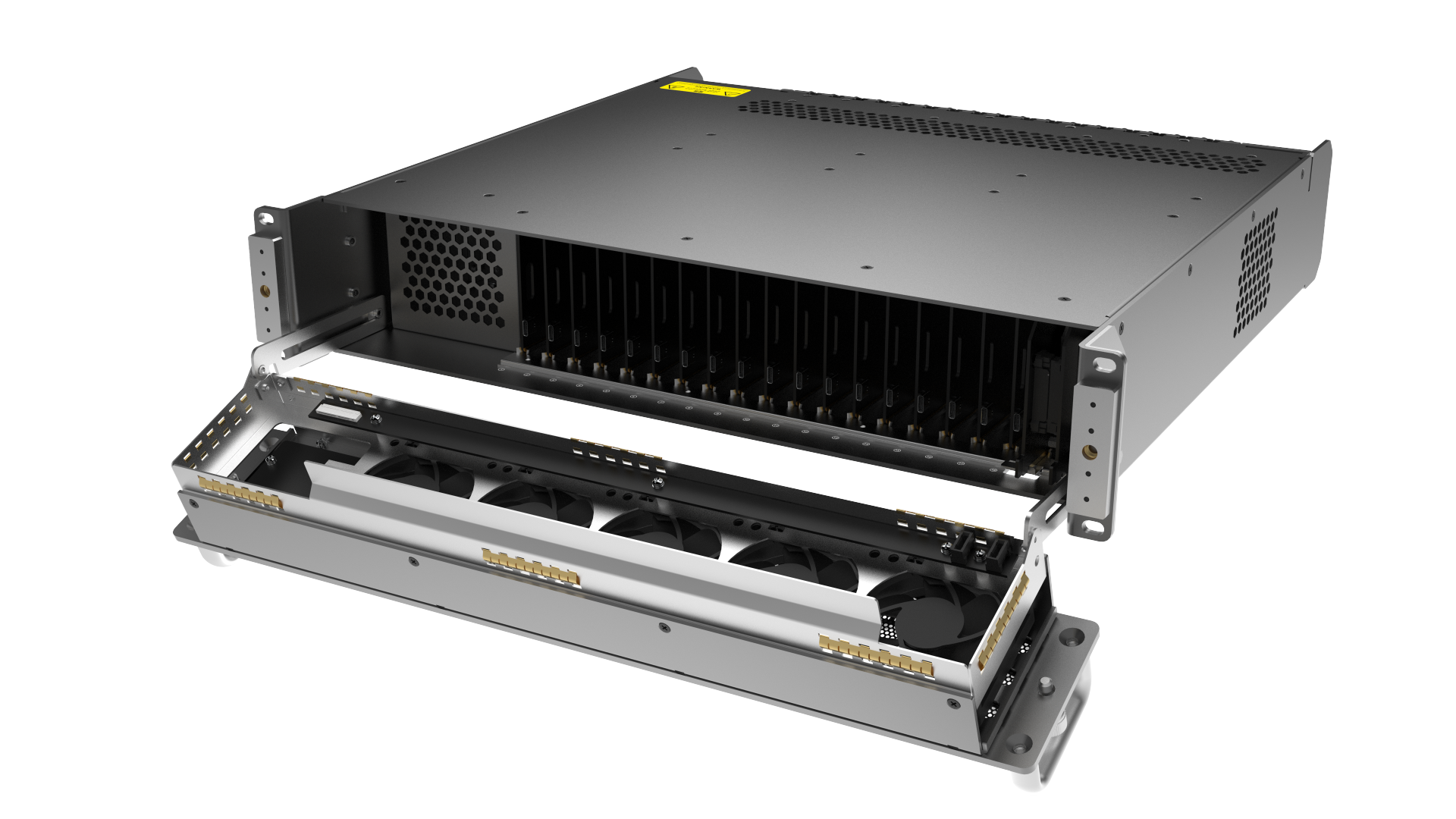

• High Durability with Advanced Cooling System: The advanced cooling system is designed to maintain optimal operating temperatures for all module cards, ensuring consistent performance over extended periods. This high level of quality ensures the RF02 can handle the toughest professional media environments, offering peace of mind that your operations will continue smoothly without unexpected interruptions

User-Friendly Interface

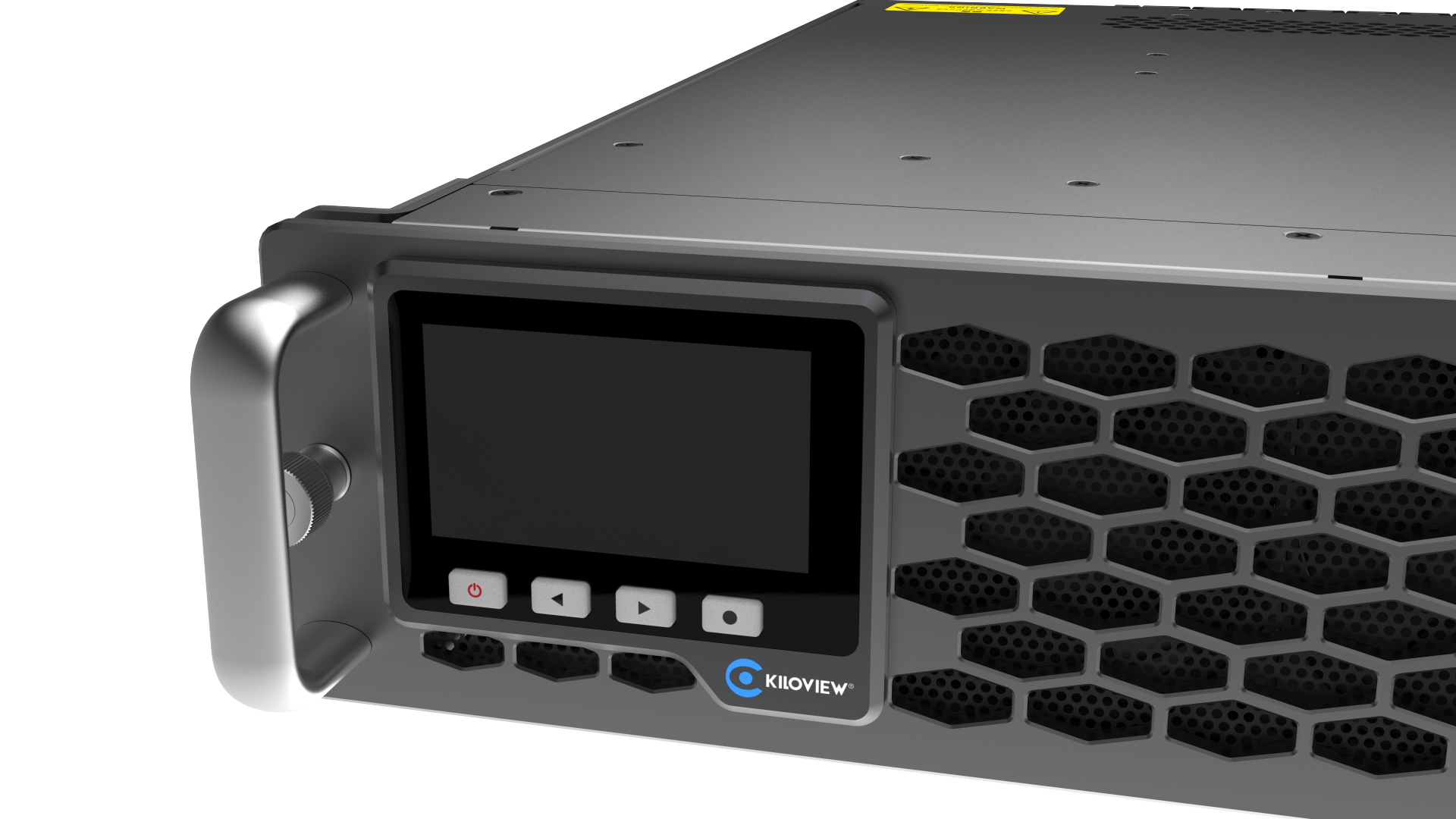

• 0-inch Color LCD Panel: RF02 has a 3.0-inch color LCD panel on the front and intuitive buttons for quick status monitoring and configuration. The display provides real-time information on the operation of each module card, enabling efficient management and direct troubleshooting.
• Web-Based Remote Management: RF02 supports a web-based management interface accessible via HTTP/HTTPS. This interface allows for remote management, including device configuration, status monitoring, and firmware upgrades, all from a user-friendly web UI. The platform also supports integration with popular web browsers like Microsoft Edge, Firefox, Chrome, Safari, and Opera, ensuring broad compatibility and ease of use.
• Easy Device Grouping and Permission Management:RF02 provides a flexible device grouping and advanced permission setting options, providing secure and convenient operations across diverse workflows.

Professional Integration Capabilities

• Extensive API Support: RF02 offers extensive API support for advanced users and developers, allowing for deeper integration into custom workflows. The HTTP/HTTPS APIs enable remote programmability and control, making it easy to automate tasks and integrate the RF02 with other systems.
• Custom Automation: This API accessibility ensures that RF02 can be tailored to meet specific operational needs, providing a level of customization that sets it apart from other solutions on the market. Whether you need to interface with existing software, create custom automation scripts, or integrate with third-party systems, the RF02 provides the tools necessary to achieve professional-grade results.
