Aida HD-NDI-TF
6 750 SEK
The HD-NDI-TF adds another level of sophistication to the already versatile NDI® HX. With an adjustable built-in
5-50mm telephoto lens, this camera’s potential is limitless. Encased in an IP54-rated case with a one-of-a-kind
telephoto lens, this camera is ready no matter the boundaries of streaming limitations.
5-50mm telephoto lens, this camera’s potential is limitless. Encased in an IP54-rated case with a one-of-a-kind
telephoto lens, this camera is ready no matter the boundaries of streaming limitations.
- Maila oss, vi svarar snabbt!
Information och specifikationer är vägledande och kan utan förvarning ändras av producenten. Alla uppgifter lämnas med reservation för tryckfel, och bilder är vägledande. Vissa texter kan vara autogenererade eller maskinöversatta och kan därför ge texter som kan vara missvisande.
- FärgN/A
Beskrivning
Art.nr: AID-HDNDITF
Main features
- Full-HD 1/2.8” Sony CMOS sensor capable of 1080 60p on NDI® HX2
- Accessible Web UI to stream directly to social media platforms and control image parameters over IP

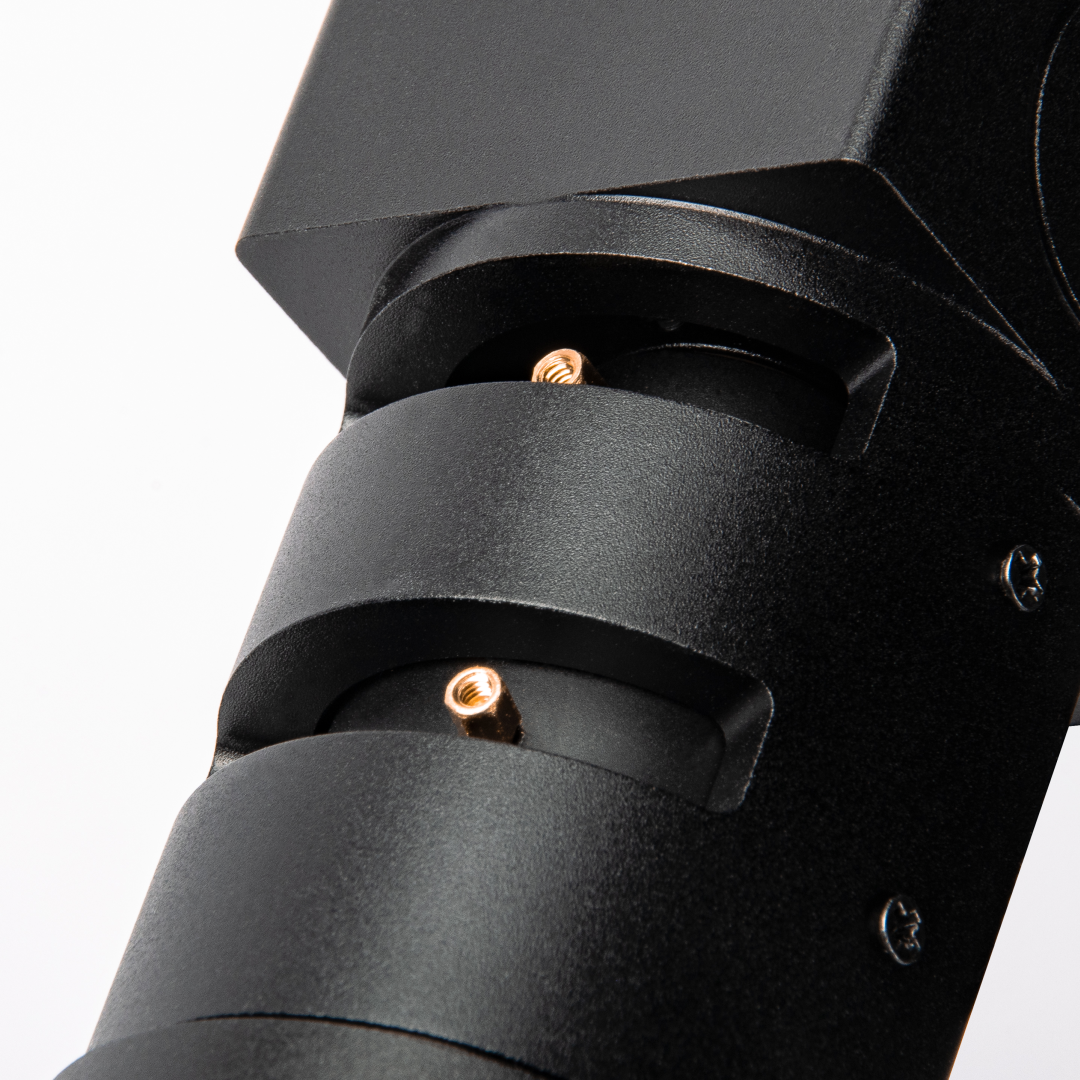

- Versatile design with top and bottom tripod mounts for unique shot creation
- PoE+ adaptable with adapter (comes with camera purchase)
- Custom IP54-rated telephoto lens providing a FOV of 51° wide and 6.1° tele to help get that perfect shot
- Weatherproof IP54 rating allows for extra protection against environmental elements
- Small form factor and rugged design makes all video streaming applications possible
- Perfectly suited for outdoor shots and new or existing NDI setups.
Specifications
- Image Sensor – 1/2.8” Sony CMOS
- Sensor Size – 5.595mm x 3.23mm (16:9)
- Effective Pixels – Horizontal: 1920, Vertical: 1080
- Pixel Size – 2.9 μm (H) x 2.9 μm (V)
- Resolution – 1080p, 1080i, 720p
- Resolution Rate – 1080p: 60/59.94/50/30/29.97/25/24; 1080i: 60/59.94/50; 720p: 60/59.94/50
- Output – IP (NDI® HX2/SRT/RTMP/RTSP)
- Color Space – 4:2:2 (YCbCr) 10bit
- Min Illumination– 0.2Lux (day), 0.1Lux (night)
- White Balance – Auto & Manual (9,000 - 11,000 K)
Weatherproofing
- IP Rating – IP54 (Good against moisture, dust, no submerge)
Lens
- Lens – VF 5mm~50mm Manual Adjustable Lens
- FOV Wide: 51°/Tele’d: 6.1°
Standard
- IP Protocol – UDP|IP, RTSP|RTMP, SRT, NDI® HX2
Physical
- Camera Control – VISCA over IP
- Operation Temperature – 32°F - 104°F
- Dimension – 73mm x 41mm x 41mm / 2.86” x 1.61” x 1.61” (with added lens)
- Weight – 454g / 1lb
- Power – 12VDC (+9 - +15VDC) (PoE Adapter Included)
Packaging contents include
- PoE Dongle Adapter
- DC 12v Power Supply & Sockets Adapter
- Lens Hex Adapter
