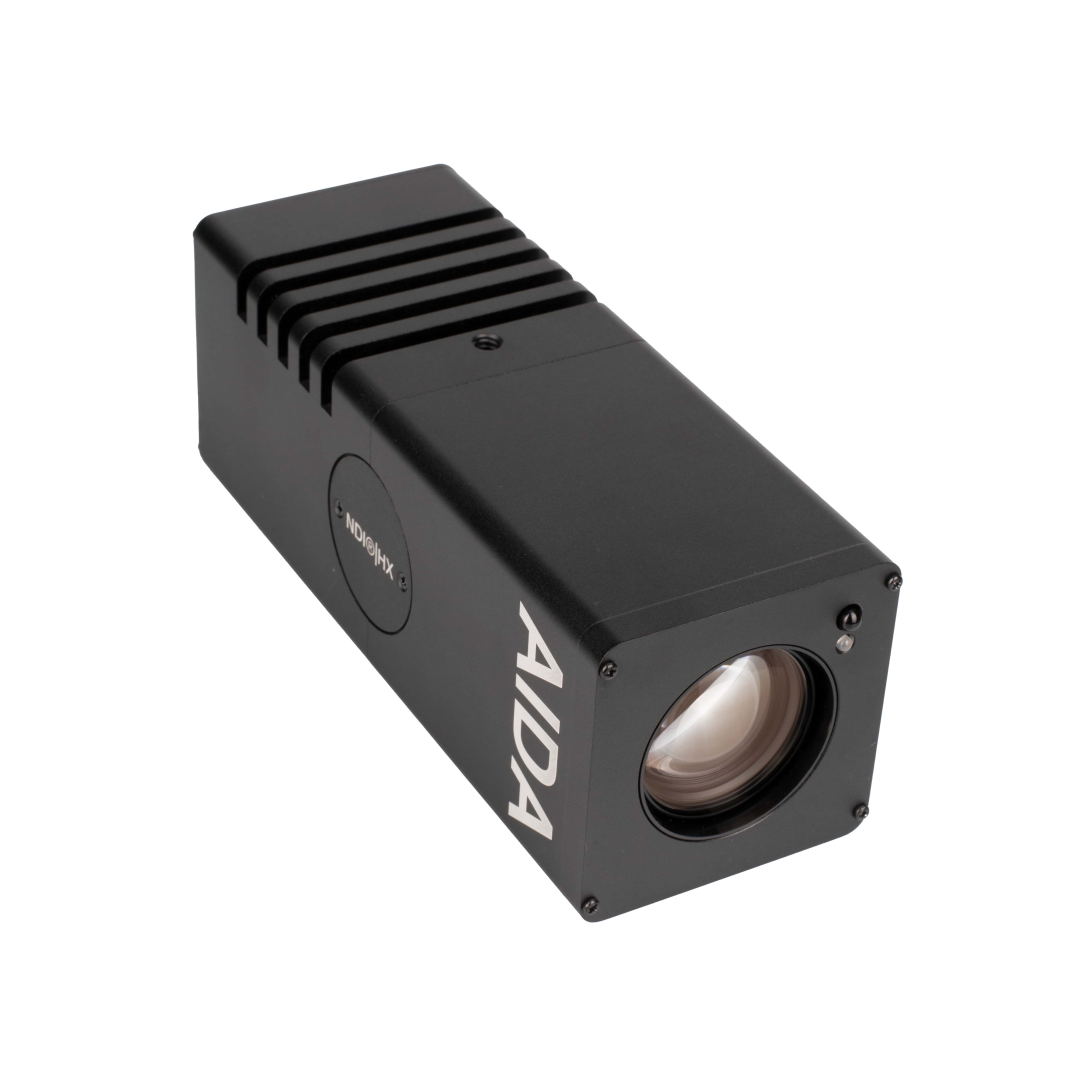

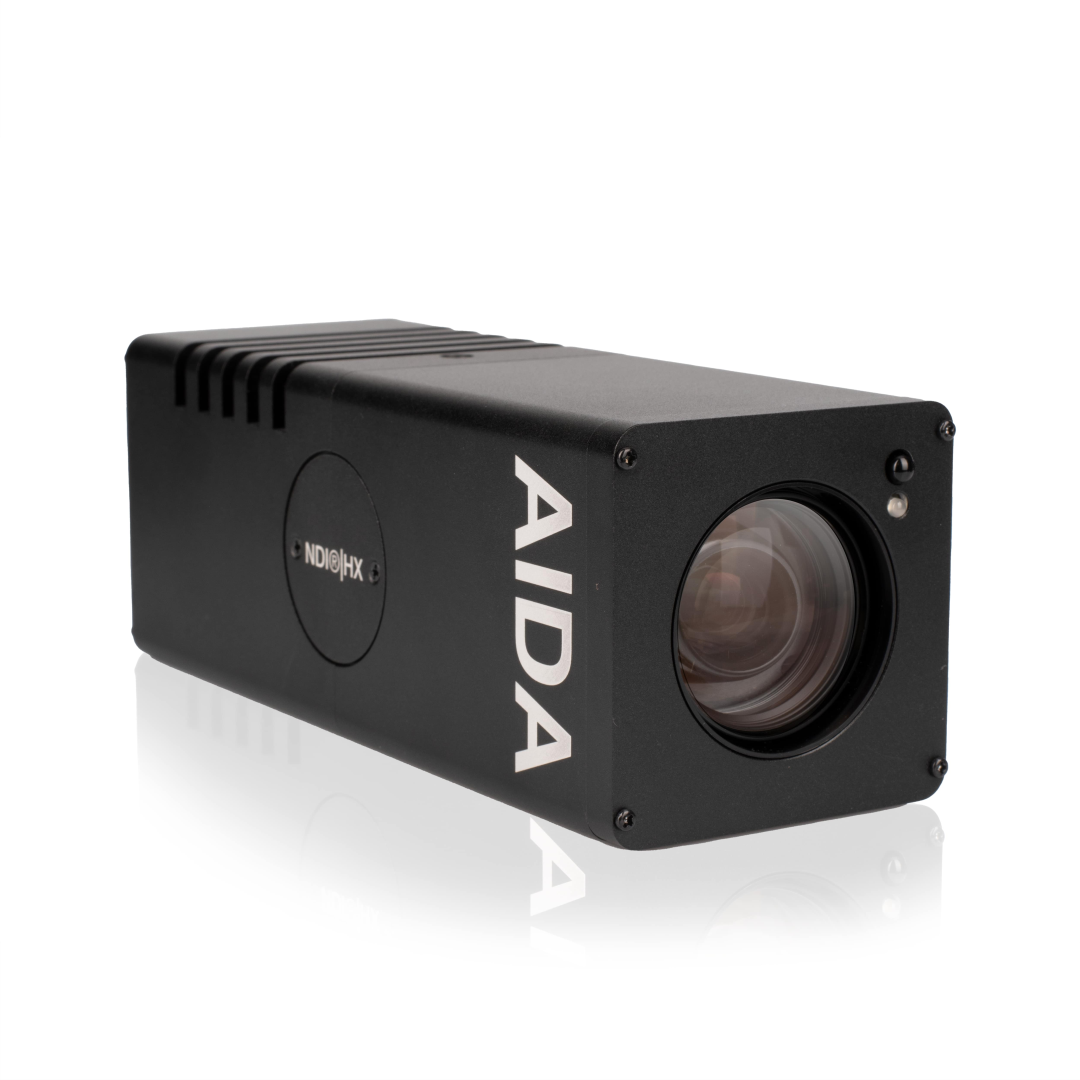

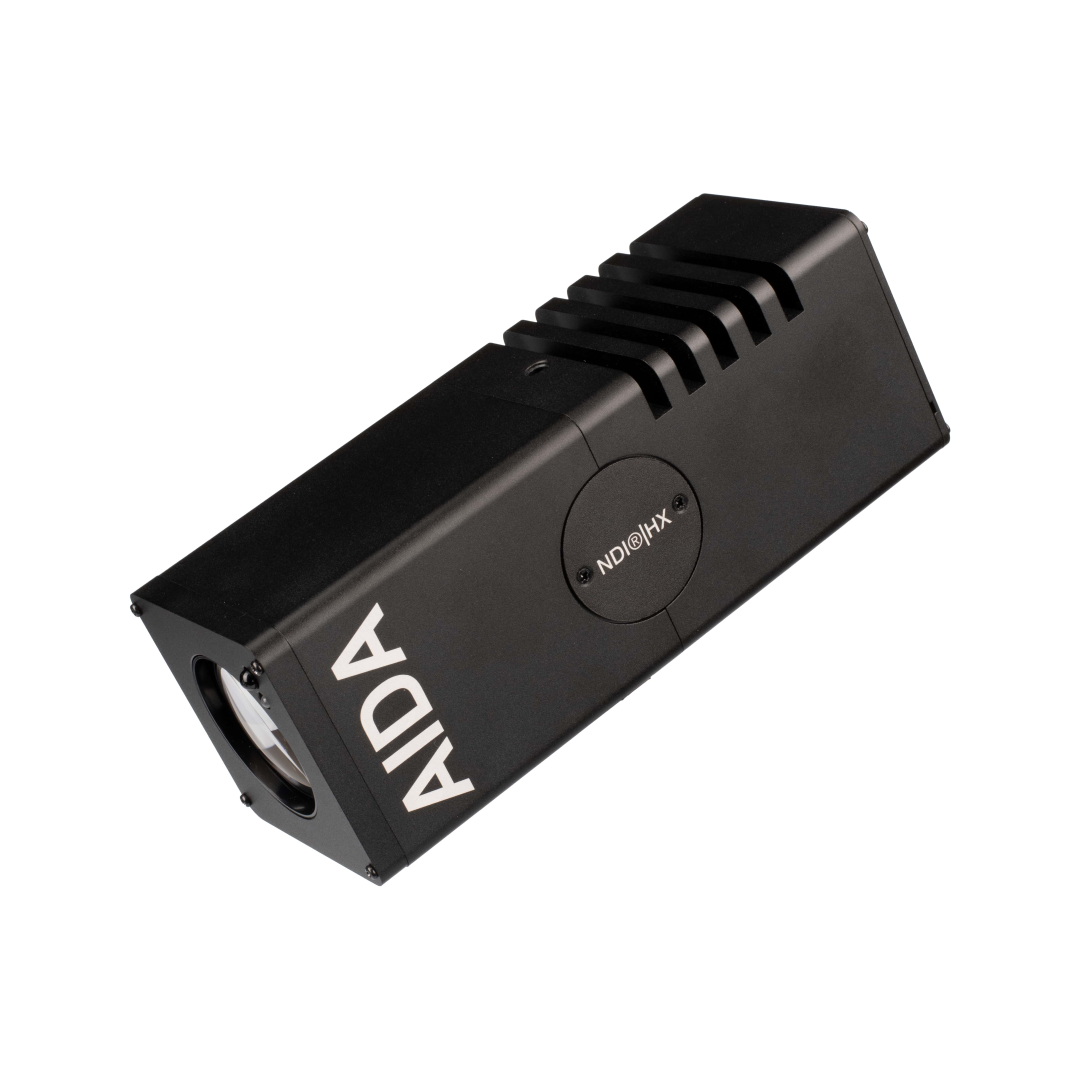

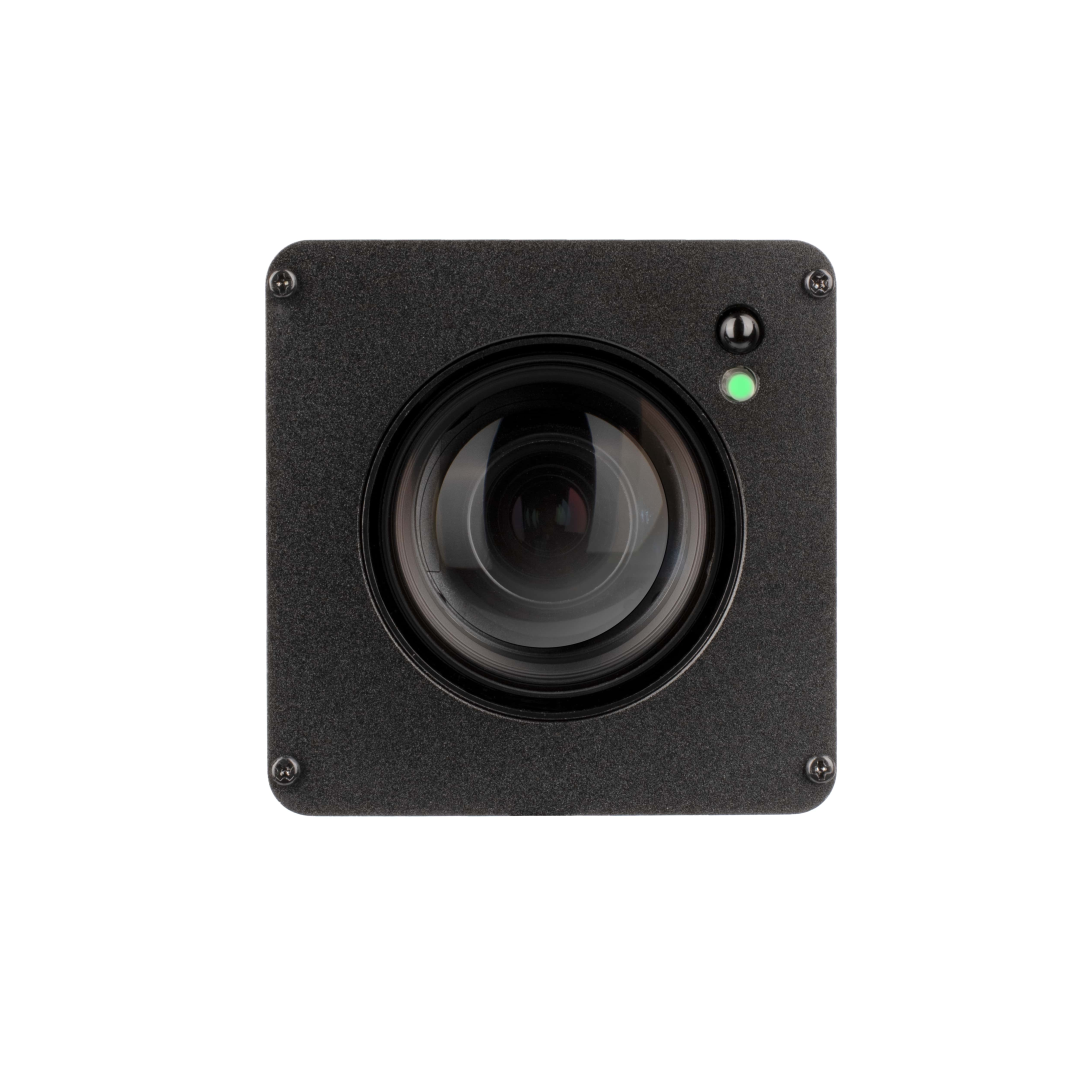

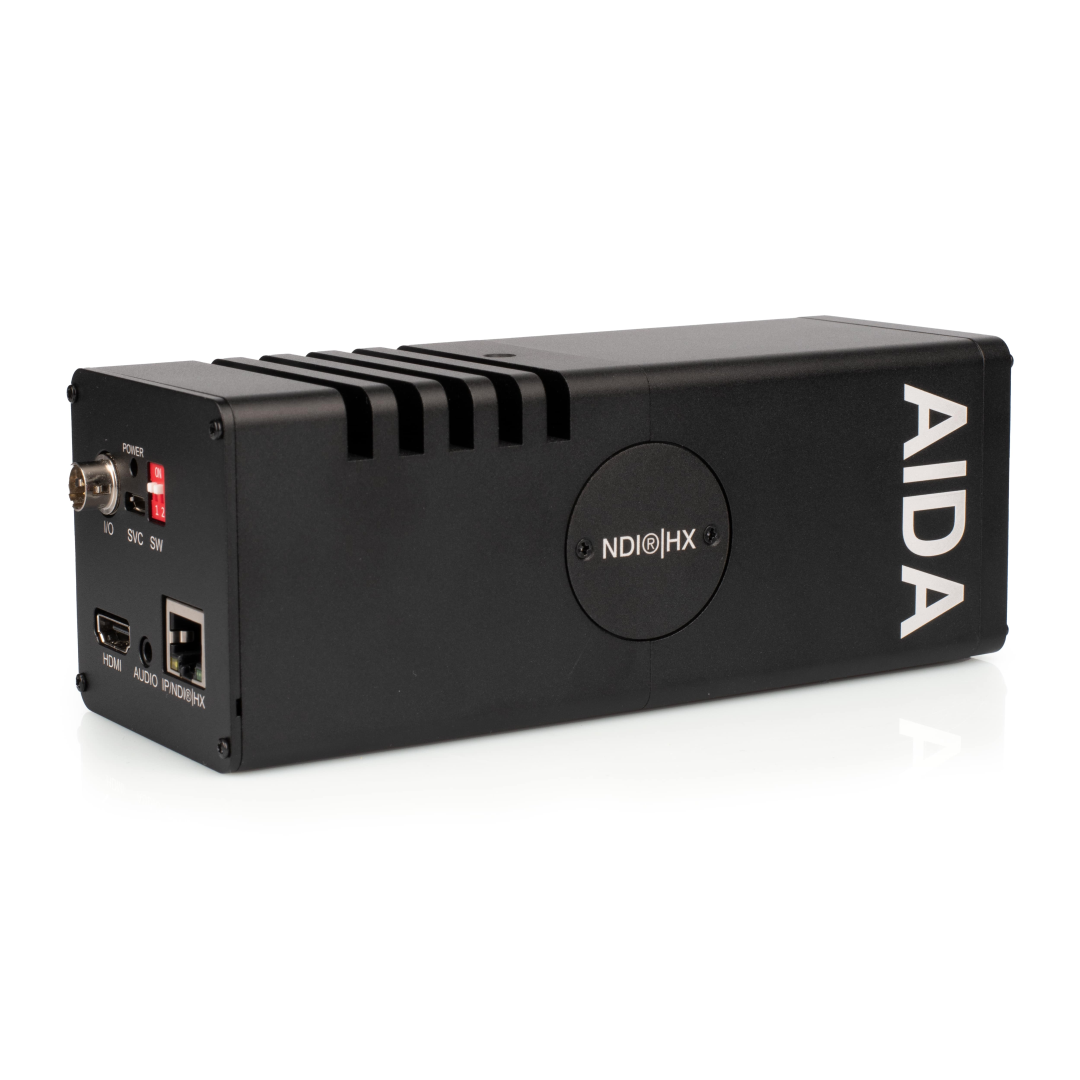

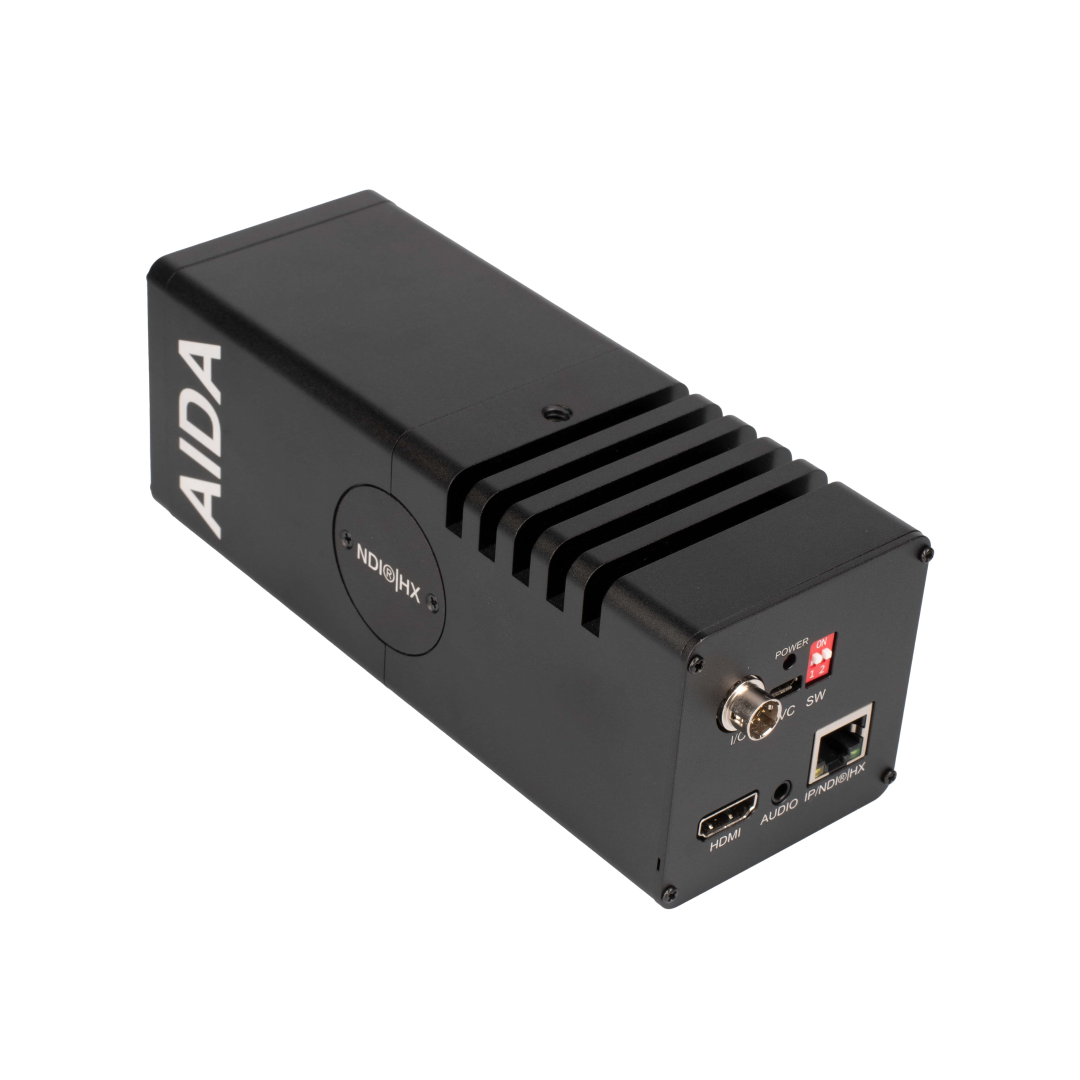

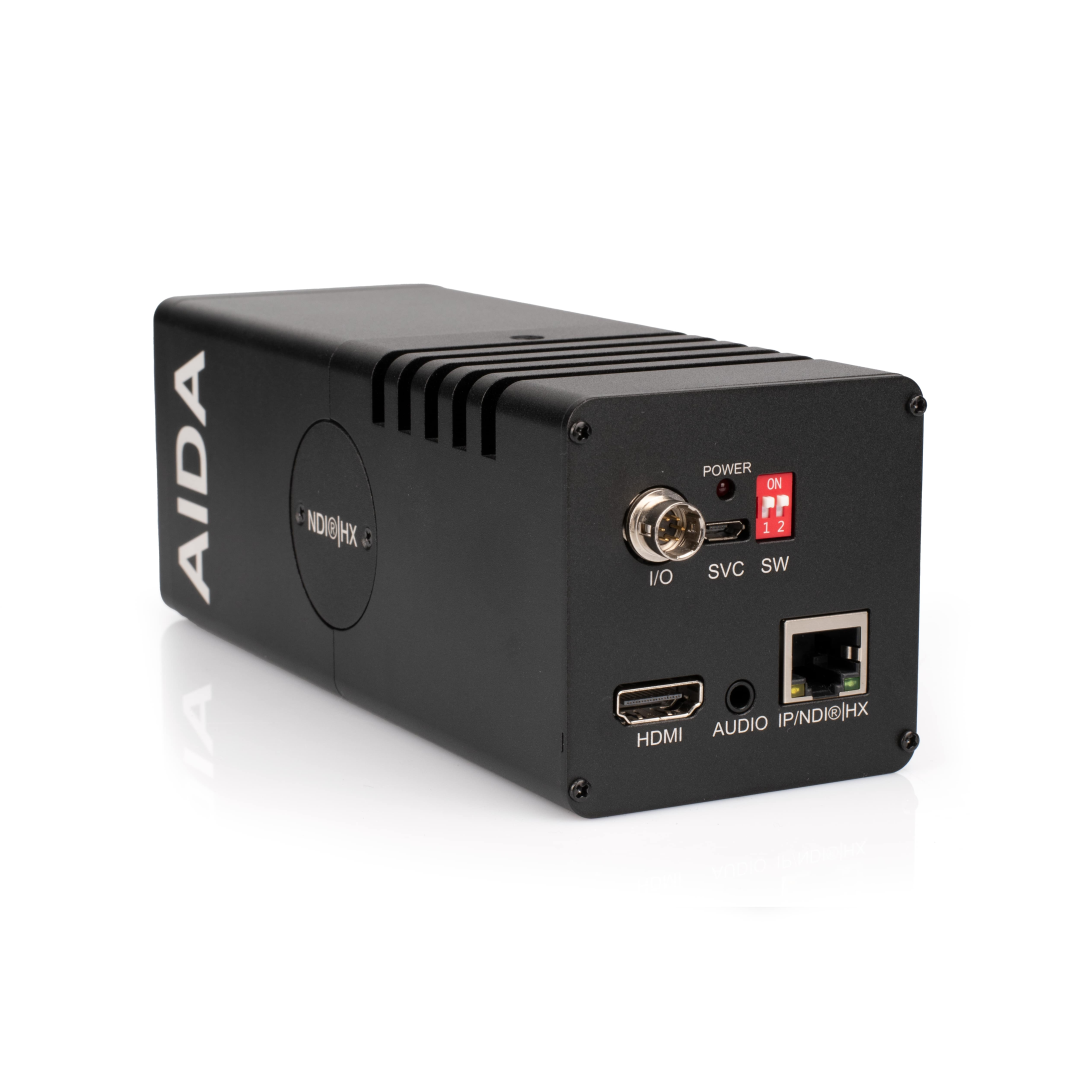

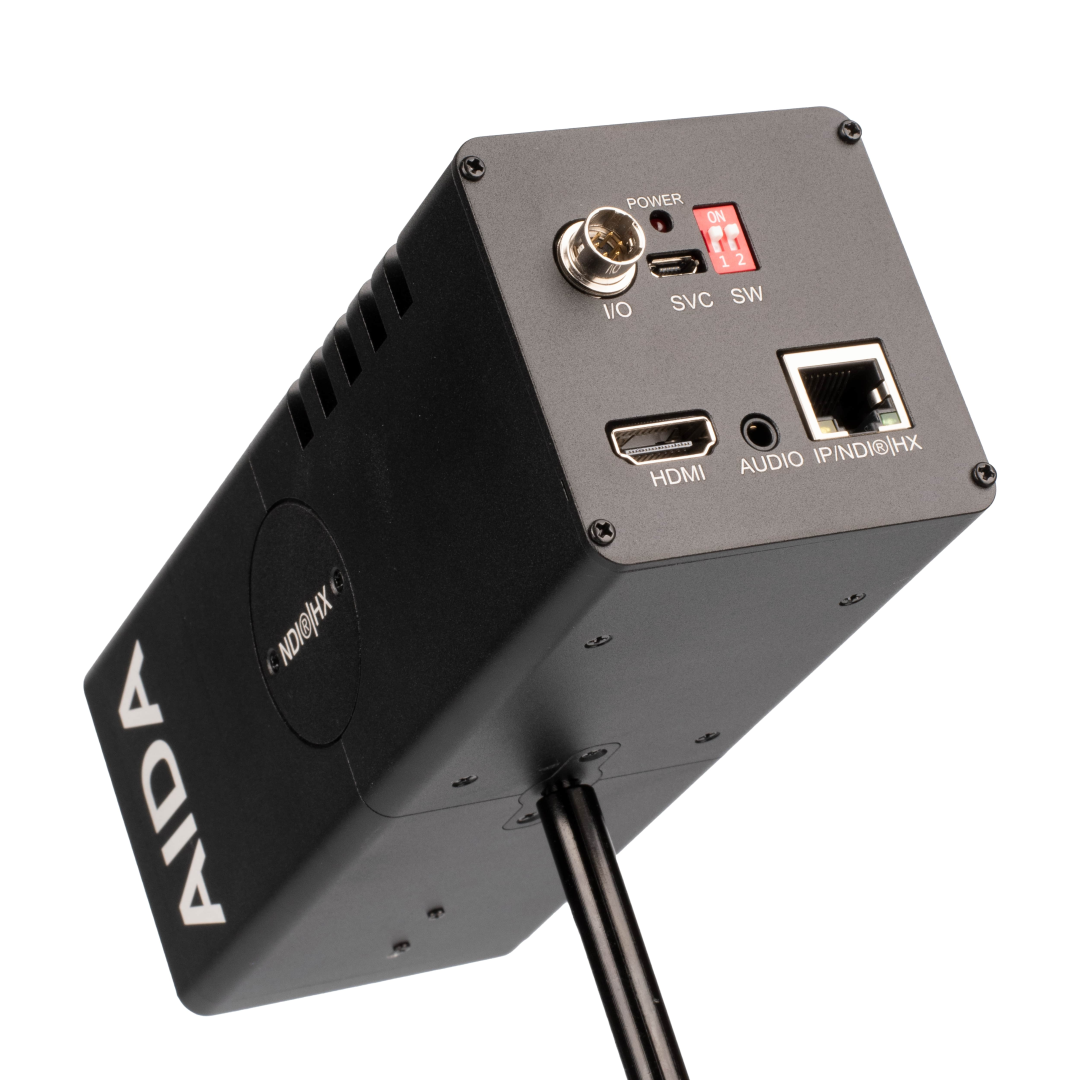

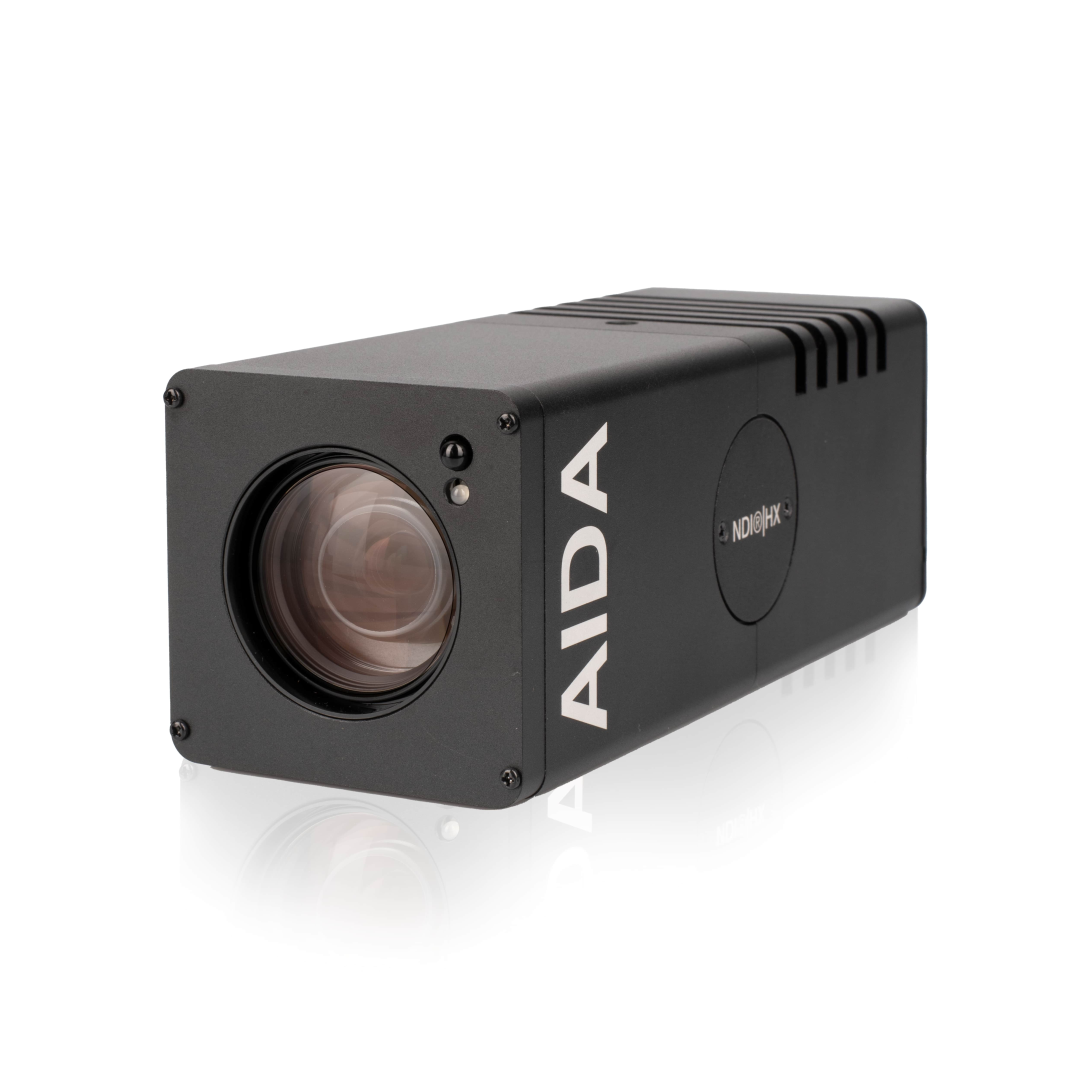

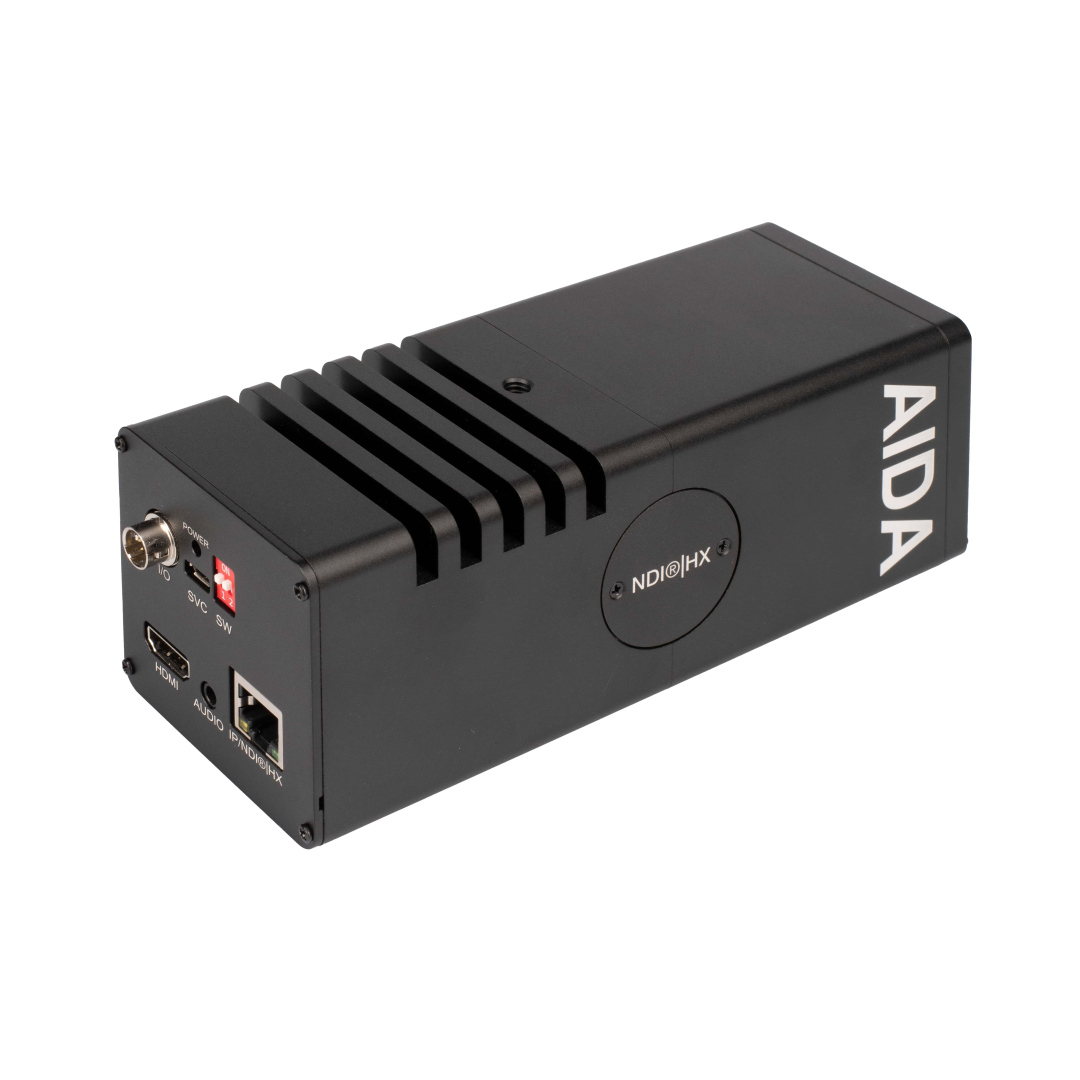

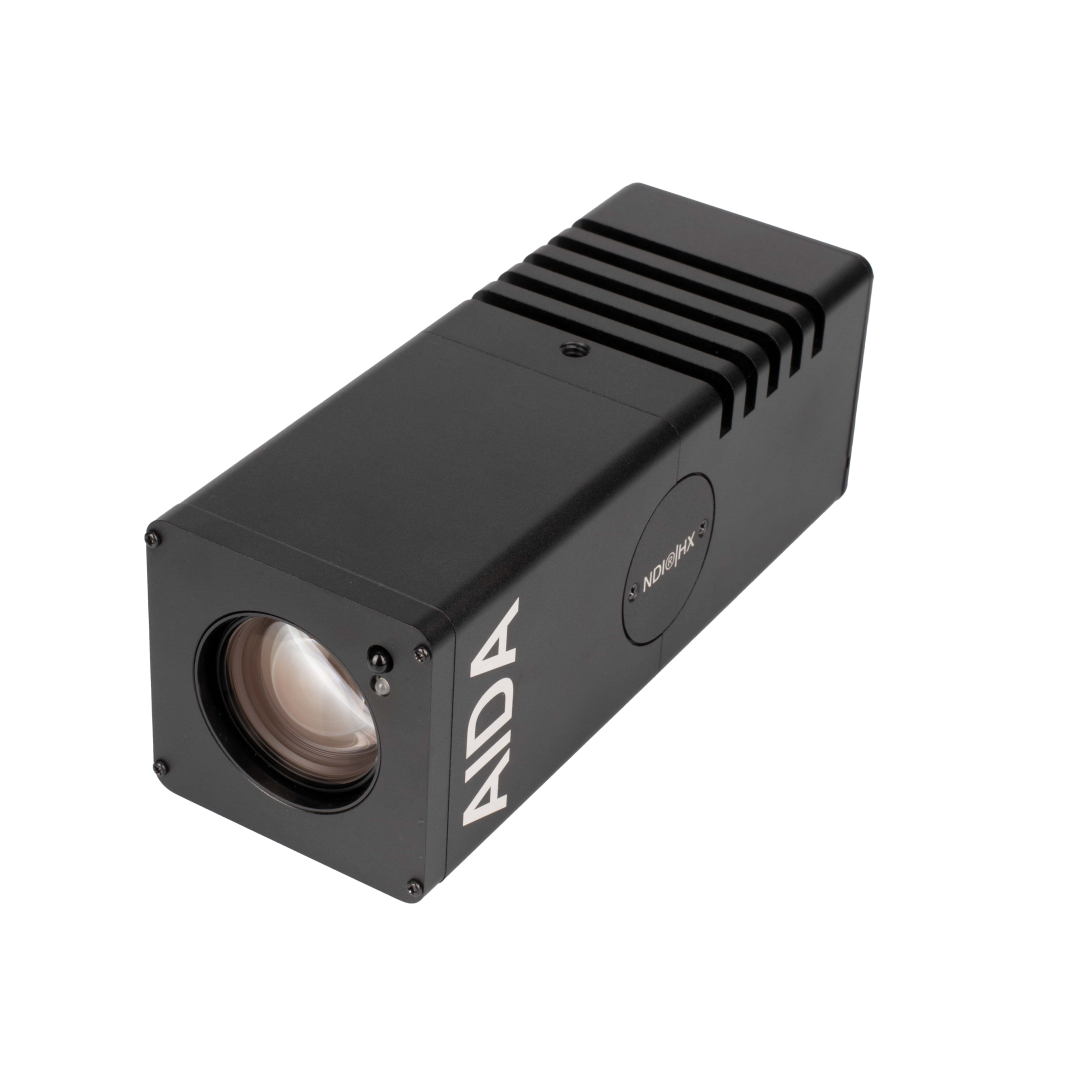

Aida HD-NDI-X20
9 500 SEK
When it comes to streaming workhorses, the HD-NDI-X20 does it all. From streaming HDMI and NDI® HX2 to relaying
visually inspiring Full-HD quality with 20x optical zoom, it’s not wonder why the HD-NDI-X20 is a juggernaut in the
streaming world.
visually inspiring Full-HD quality with 20x optical zoom, it’s not wonder why the HD-NDI-X20 is a juggernaut in the
streaming world.
- Maila oss, vi svarar snabbt!
Information och specifikationer är vägledande och kan utan förvarning ändras av producenten. Alla uppgifter lämnas med reservation för tryckfel, och bilder är vägledande. Vissa texter kan vara autogenererade eller maskinöversatta och kan därför ge texter som kan vara missvisande.
- FärgN/A
Beskrivning
Art.nr: AID-HDNDIX20
Main features
- Full-HD 1/2.86” Panasonic sensor capable of 1080 60p on NDI® HX2 video
- Accessible Web UI to stream directly to social media platforms and control image parameters over IP
- 20x optical zoom for Full-HD shots over distances of up to 140 ft
- OSD breakout cable provides power or control of zoom over serial RS485 communication
- Flawlessly relays multi-channel embedded audio via NDI® HX
- Perfectly suited for new and existing NDI setups
- PoE compatible to ease cable runs with 1 ethernet cable
Specifications
- Image Sensor – 1/2.86” Panasonic CMOS
- Sensor Size – 5.346mm x 3.336mm (16:9)
- Effective Pixels – Horizontal: 1920, Vertical: 1080
- Pixel Size – 2.75 μm (H) x 2.75 μm (V)
- Resolution – 1080p, 1080i, 720p
- Resolution Rate – 1080p: 60/59.94/50/30/29.97/25/24/23.98p; 1080i: 60/59.94/50; 720p: 60/59.94/50/30/29.97/25
- Output – IP (NDI® HX2/SRT/RTMP/RTSP)
- IP Rate – 1920 x 1080 @ 3~60; 1280 x 720 @ 3~60; 1024 x 576 @ 3~60; 620 x 360 @ 3~60
- Color Space – 4:2:2 (YCbCr) 10bit
Lens
- Lens – 20X Optical Zoom Module | FOV 61°~3.4°
Audio
- Input – 3.5mm TRS Stereo Audio Port (IP ONLY)
- Sample Rate – 16/24/32 Bits
Physical
- Camera Control – VISCA RS485, VISCA over IP; OSD Buttons or Web UI
- Operation Temperature – 32°F - 104°F
- Dimension – 54mm x 54mm x 127mm / 2.125” x 2.125” x 5” (with default 4mm lens)
- Power – 12VDC (+9 - +15VDC)/POE
Packaging contents include
- NDI® POV CAMERAS
- IP Remote Control
- DC 12v Power Supply & Sockets Adapter
- I/O Breakout Cable
