Kiloview D260 HD IP to SDI/HDMI/VGA Video Decoder
5 000 SEK
4-Channel HD H.265 HDMI & SDI Decoder
- Maila oss, vi svarar snabbt!
Information och specifikationer är vägledande och kan utan förvarning ändras av producenten. Alla uppgifter lämnas med reservation för tryckfel, och bilder är vägledande. Vissa texter kan vara autogenererade eller maskinöversatta och kan därför ge texter som kan vara missvisande.
- VarumärkeKiloview
Beskrivning
Art.nr: K-D260
D260 is Kiloview’s newest H.265 1X3G-SDI+2XHD HDMI decoder which builds on the capabilities of our original decoder DC230 with expanded new features including upgraded decoding performance, extended ports, more protocols supported and a new LCD screen. Everything your need about decoding is packaged in this single unit with low cost.
Upgrading Decoding Performance with H.265/H.264
D260 now supports decoding in H.265 format and up to 4-channel of video streams in 1080p60 simultaneously. All 4 video outputs can be custom to single display or PIP with adjustable figures.
More Protocols Supported
For all IP-based video transmission process, D260 supports the latest NDI technology – NDI|HX3*, NDI|HX2, SRT, RTMP/RTMPS, HLS, TS over UDP, and RTP/RTSP
* Support of NDI|HX3 is still in beta version.
Extended Output Interfaces
As an upgraded version of DC230, D260 adds a couple more interfaces for advanced application. Now D260 is equipped with two HDMI 2.0 ports, one 3G-SDI port and 2 USB ports(one USB Type-A and one USB Type-C)to ensure the scalability, It’s capable for outputting in three ways: Independently, Combine multi-channel video flows or replicate of one single flow to stream simultaneously.
16 Preview + 4 Output
D260 supports “preview + output” mode, in which you can preview 16 video streams and select 4 of them to display on the screen for output simultaneously. This feature can also be used for monitoring (PVW/PGM).
Powerful Audio Decoding
D260 is also super powerful in audio decoding. With a long list of audio formats supported including AAC/MPEG-4/MPEG-2/G.711/Opus/LPCM, It’s also capable of switching audio On/Off, audio mix and audio gain in real-time to output alternatively through its HDMI ports, SDI port and 3.5mm line out port.
Custom Layouts
Custom multi-output display is also allowed for D260(including custom grids/PIP/simply drag and drop). All things about display(bit-rate and resolution) can be customized.
Display and Touch Button

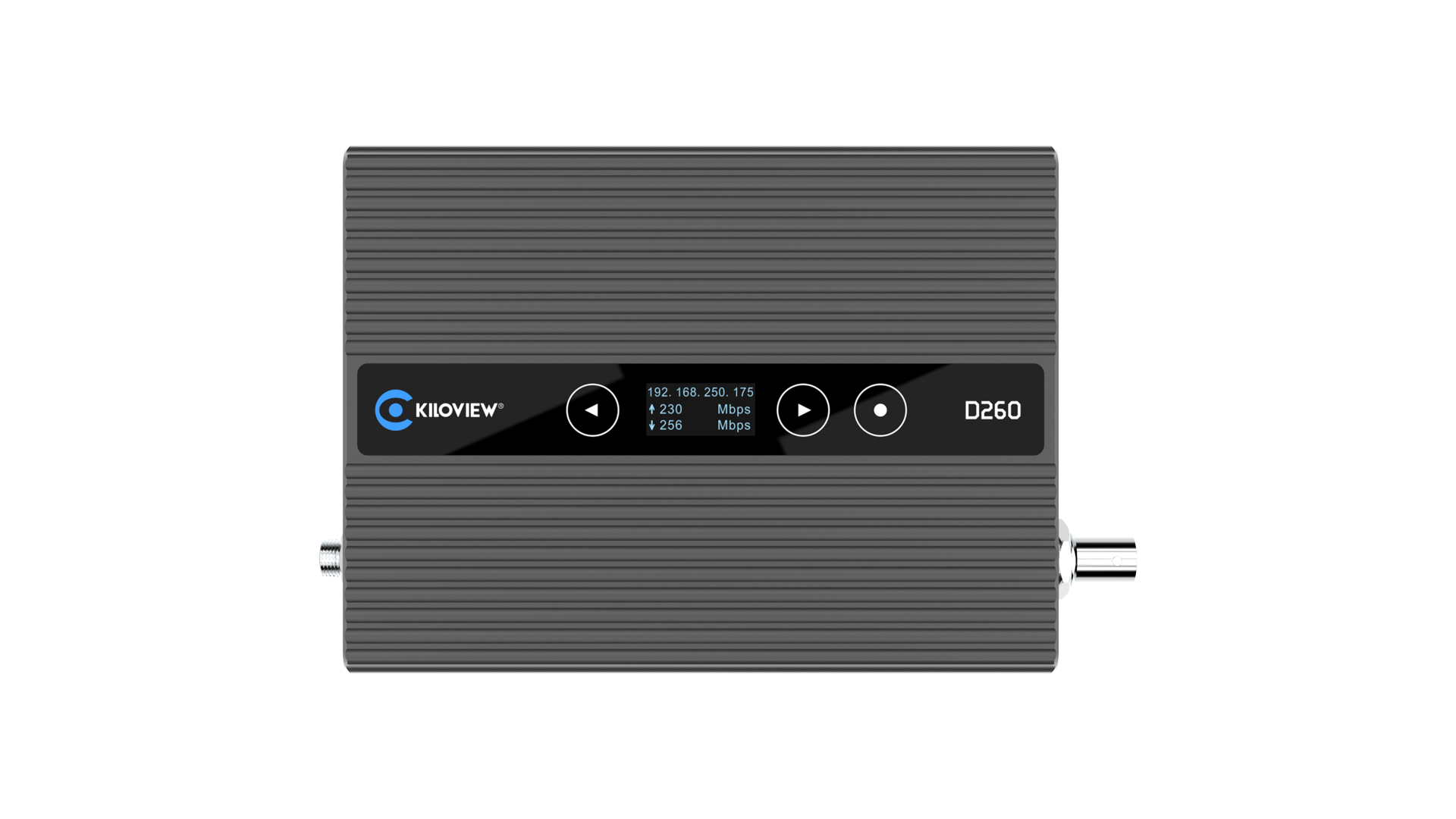

D260 is equipped with an LCD screen with touch buttons for a better user experience. With the built-in LCD screen, users can easily check transmission status in real-time.
Upgrading Decoding Performance with H.265/H.264
D260 now supports decoding in H.265 format and up to 4-channel of video streams in 1080p60 simultaneously. All 4 video outputs can be custom to single display or PIP with adjustable figures.
More Protocols Supported
For all IP-based video transmission process, D260 supports the latest NDI technology – NDI|HX3*, NDI|HX2, SRT, RTMP/RTMPS, HLS, TS over UDP, and RTP/RTSP
* Support of NDI|HX3 is still in beta version.
Extended Output Interfaces
As an upgraded version of DC230, D260 adds a couple more interfaces for advanced application. Now D260 is equipped with two HDMI 2.0 ports, one 3G-SDI port and 2 USB ports(one USB Type-A and one USB Type-C)to ensure the scalability, It’s capable for outputting in three ways: Independently, Combine multi-channel video flows or replicate of one single flow to stream simultaneously.
16 Preview + 4 Output
D260 supports “preview + output” mode, in which you can preview 16 video streams and select 4 of them to display on the screen for output simultaneously. This feature can also be used for monitoring (PVW/PGM).
Powerful Audio Decoding
D260 is also super powerful in audio decoding. With a long list of audio formats supported including AAC/MPEG-4/MPEG-2/G.711/Opus/LPCM, It’s also capable of switching audio On/Off, audio mix and audio gain in real-time to output alternatively through its HDMI ports, SDI port and 3.5mm line out port.
Custom Layouts
Custom multi-output display is also allowed for D260(including custom grids/PIP/simply drag and drop). All things about display(bit-rate and resolution) can be customized.
Display and Touch Button
D260 is equipped with an LCD screen with touch buttons for a better user experience. With the built-in LCD screen, users can easily check transmission status in real-time.
KiloView Warranty
One-year warranty by default.
2nd year: When customer receives the equipment. For a free second-year warranty extension please register and fill in the SN number for all the equipment. Kiloview Warranty Registration
3rd year: If the customer wants a longer warranty extension, we support paying for a third year of warranty extension. The charge is aprox. 10% of the MSRP of the equipment
